ACU-FVS
Flexible Videoscope
Unparalleled tool for numerous inspection scenarios including TSCM and under-door viewing.
ACU-FVS: Tactical Visual Intelligence
The ACU-FVS Flexible Video-Scope is a cutting-edge tool designed for various high-stakes applications, including criminal investigation, Explosive Ordnance Disposal (EOD), security inspections, anti-smuggling operations, search and rescue missions, and related testing work.
Engineered for ease of use and durability, this portable device enables single-person operation, with a lightweight, high-strength design for optimal performance in demanding environments. Its robust construction ensures strong concealment and reliable operation under challenging conditions.
High-Definition Endoscopy. 360° Articulation. Total Access.
1. The Challenge: The "Blind Spot" in the Sweep
In the Digital Age, the most dangerous threats hide in the “voids”—inside air conditioning ducts, behind heavy server racks, within wall cavities, or under-door scenarios. While your electronic tools might detect a presence, physical confirmation is the final, non-negotiable step of a professional sweep.
If you can’t physically inspect the void, you can’t guarantee security. The ACU-FVS provides the “eyes-on-target” required to confirm the findings of your signal and thermal detectors.
2. The Solution: Precision Visual Interrogation
The ACU-FVS is a cutting-edge videoscope engineered for the rigors of TSCM, EOD, and criminal investigations. It allows a single operator to snake high-definition lenses into the most inaccessible areas, viewing results on a 6-inch industrial-grade LCD touchscreen.

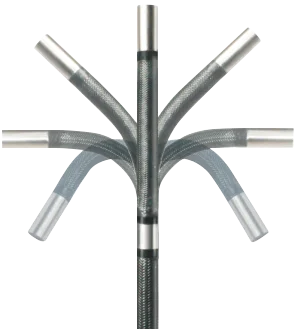

- Total 360° Articulation: Our 3.9mm and 6mm models feature 4-way, 360° full-way articulation, allowing you to navigate complex turns and “look back” behind obstacles.

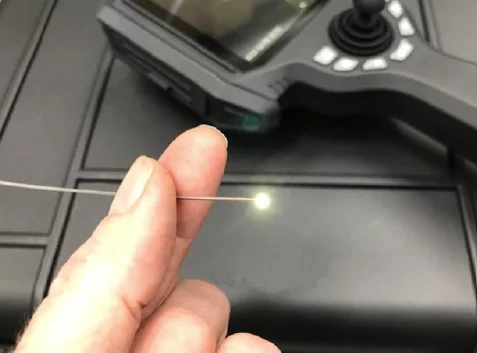

- The 0.95mm Micro-Gap Specialist: For the most restrictive environments, this ultra-slim probe fits through gaps as small as a sewing needle\u2014perfect for inspecting internal electronics, keyholes, and micro-cracks where articulated probes cannot fit.
- Forensic Documentation: Capture high-stakes evidence with built-in sound pickup and HD video/photo recording directly to an external SD card.
3. The Modular Advantage: One Platform, Infinite Reach
The ACU-FVS features a Quick-Connect Modular Interface. This allows the professional operator to use a single high-performance “Head” unit across a diverse range of interchangeable probes tailored to the specific mission.
Tactical Probe Configurations
| Probe Diameter | Type | Max Length | Tactical Advantage |
|---|---|---|---|
| 0.95 mm | Straight View | 2.1 m | Micro-Access: Ideal for internal device auditing. |
| 3.9 mm | 360° Articulation | 3 m | Versatility: Tungsten braided for extreme durability. |
| 6 mm | 360° Articulation | 3 m | High-Definition: Optimal for structural voids. |
4. Professional Specifications
Built for durability and ease of use, the ACU-FVS is a field-hardened powerhouse.

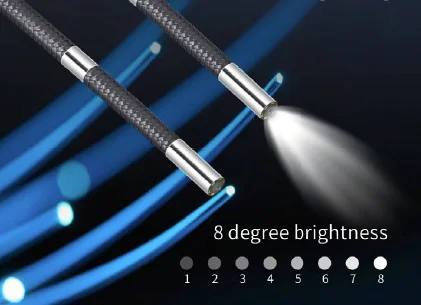

- Visual Intelligence: 1920×1080 resolution with 8-degree adjustable brightness for dark environments.
- Mission Endurance: Dual-circuit design with hot-swappable battery support for 8+ hours of continuous use.
- Tactical Connectivity: Integrated WiFi wireless transmission for remote monitoring and real-time team collaboration.
- Environmental Ruggedness: IP54-rated host and IP67-rated probes that are water and oil resistant.
- Forensic-Ready: Supports up to 128GB TF card storage with photo, video, freezing, and zooming capabilities.
5. The Acustek Suite: A Legacy of Trust
Established in 2009, Acustek has spent over 15 years perfecting the tools of the trade. The ACU-FVS is the visual “Truth Layer” that completes the search scenario.
- Dark Compass: Identifies the digital signal, protocol, and network topology.
- Net-Shield: The software intelligence layer. It performs deep-packet inspection and real-time network analysis to find the “hidden” data paths that hardware alone might miss.
- SWORD-24: Locates the physical silicon junctions of dormant or “dead” electronics.
- ACU-S1: Confirms the active thermal footprint using Fusion II Forensic Imaging.
- LUMINAR: Physically exposes the lens for the final, absolute proof of a visual threat.
